    <h3>data collection framework</h3>
    <p></p>
    <table style="BORDER-COLLAPSE: collapse" cellspacing="0" cellpadding="10"
    width="100%" border="0" align="left">
      <tr>
        <td valign="top" width="100%">
        <p align="left">It's rudimentary, but is a stable and very basic data
        collection framework.</p>
        <p>First you start with WAMP. I assume you're going to be running this
        under a Windows platform.</p>
        <p>For 32 bit:<br>
        <a target="_blank"
        href="http://www.wampserver.com/en/#wampserver-32-bits-php5-3">
        http://www.wampserver.com/en/#wampserver-32-bits-php5-3</a> <br>
        Patch: <a target="_blank"
        href="http://www.microsoft.com/download/en/details.aspx?id=8328">
        http://www.microsoft.com/download/en/details.aspx?id=8328</a> </p>
        <p>For 64 bit:<br>
        <a target="_blank"
        href="http://www.wampserver.com/en/#wampserver-64-bits-php-5-3">
        http://www.wampserver.com/en/#wampserver-64-bits-php-5-3</a> <br>
        Patch: <a target="_blank"
        href="http://www.microsoft.com/download/en/details.aspx?id=13523">
        http://www.microsoft.com/download/en/details.aspx?id=13523</a> </p>
        <p>The patch is needed because if you don't have certain frameworks
        already installed, it throws errors. The <a target="_blank"
        href="http://www.wampserver.com/en/">wampserver.com</a> site has an
        extensive forum that explains nearly everything.</p>
        <p>Once you've got that up and running... :D</p>
        <p>You'll make a database (mine was named brands, so those code
        references will need to be changed to yours) and then a table within
        your database (mine is called test). I called my database user test as
        well, but you don't need to.</p>
        <p>You'll open up the SQL window in phpMyAdmin and copy the text in from
        the <a target="_blank" href="../images/dcf_sql_dump.txt">sql_dump.txt</a>
        file. This will create a test database. Before you modify anything to
        the way you want it, install everything as given so it's easier to
        troubleshoot. WAMP set up can be a bit titchy. (Note that I've changed
        all the file names to preface with dcf_ and end with .txt. You should
        change them once you download them.)</p>
        <p>Then copy the <a target="_blank"
        href="../images/dcf_index_test.php.txt">index_test.php</a> and
        <a target="_blank" href="../images/dcf_zzzz.php.txt">zzzz.php</a> files
        into the root of the www directory. Once everything's running well, you
        can rename both the file and the link within that file (at the end of
        the page) to just plain index.php. It will be OK to remove any other
        test files at that point. The zzzz.php page is your connection string.
        It's set up for test and for the local data connection. Once
        everything's working, then you can change it from test.</p>
        <p>Navigating to <a target="_blank" href="http://localhost/">
        http://localhost/</a> or <a target="_blank" href="http://127.0.0.1/">
        http:/127.0.0.1/</a> at this point should show you the default page from
        the WAMP set up. (This will change once you're done.) Make sure to set
        the server to be &quot;online&quot;.</p>
        <p>From the system tray icon, you'll want to navigate to your php.ini
        file. I've included the <a target="_blank"
        href="../images/dcf_php.ini.txt">php.ini.txt</a> file - this is the
        configuration file from a 64 bit installation. If you want to use a
        merge tool like <a target="_blank"
        href="http://sourceforge.net/projects/kdiff3/files/">kdiff3</a> to
        compare the differences that makes it easier.</p>

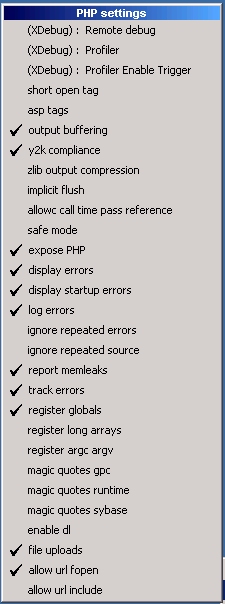

        <p>However, there are some settings that need to be activated from the
        menu. These are documented in the <a target="_blank"
        href="../images/dcf_php_settings.jpg">php_settings.jpg</a> file.</p>
        <p>Now you'll open the MySQL command window. Log in with whatever
        default password you've set. It's a development environment, so you can
        configure it to be no password at all (this was configured during
        initial set up). Depends on the security levels you need to enforce in
        your environment. Dev set ups tend to be low on passwords so as to speed
        up the delivery of code... You'll have set a password and user name
        within phpMyAdmin for the database you've created, but due to some
        quirks within WAMP you'll need to go into the console and run these
        statements (one line at at time):</p>
        <p><b>SET PASSWORD FOR 'brands'@'localhost' = PASSWORD('brands');<br>
        SET PASSWORD FOR 'root'@'localhost' = PASSWORD('');<br>
        GRANT ALL PRIVILEGES ON *.* TO 'brands'@'localhost' IDENTIFIED BY
        'brands' WITH GRANT OPTION;<br>
        GRANT ALL PRIVILEGES ON *.* TO 'root'@'localhost' IDENTIFIED BY '' WITH
        GRANT OPTION;</b></p>
        <p>Change wherever it says brands to be the name of your database. I
        named my database brands and also made the user name and password be
        brands as well, so if you have a different password, where the first
        statement says PASSWORD ('brands') then you'll want to change that to be
        the password you selected.</p>
        <p>At this point, you'll restart WAMP - very easy to do from the tray
        icon. Once it turns green again, you can select localhost from the top
        of the menu, and test the code to ensure it works without errors. Once
        it does, save a copy of your settings and code off to the side, then
        make any modifications you need to.</p>
        <p>Once you acquire the data you want, then it's relatively easy to go
        into phpMyAdmin and using the Export tab, export your accumulated data
        in a variety of formats to be imported into your main database.</td>
